This item is currently out of stock and unavailable for purchase.

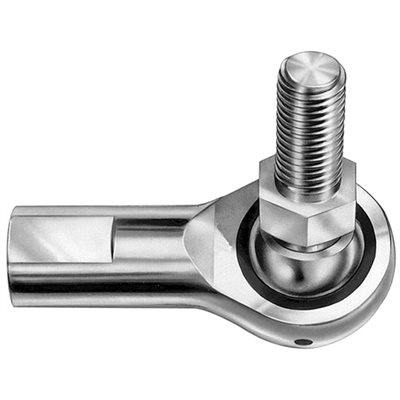

FEMALE ROD END W/STUD BALL JOINT 5/16-24 RIGHT
$20.50/box
Description
- Type : Female Rod End W/Stud Ball Joint
- Thread Size-External : 5/16-24 R.H.
- Thread Size-Internal : 5/16-24 R.H.
- Thread Length-Internal : 0.750”
- Ball Center to Housing End : 1.375”
- Ball Center to Stud Thread End : 0.531”
- Ball Outside Diameter : 0.625”
- Ball Stud Neck Diameter : 0.312”
- Ball Stud Thread Length : 0.687”
- Ball Thickness : 0.437”
- Head Thickness : 0.344”
- Head Width : 0.875”
- Across Flats : 0.437”
- Overall Length : 1.812”
- Wrench Width : 0.500”
- Stud Hex Width : 0.187”
- Shank Diameter : 0.500”
- Material : Housing-Low carbon steel, Ball-Low carbon steel-case hardened, Threaded Stud medium carbon steel
- Finish : Dichromate
- Pcs/Unit: 1
- Country: US
